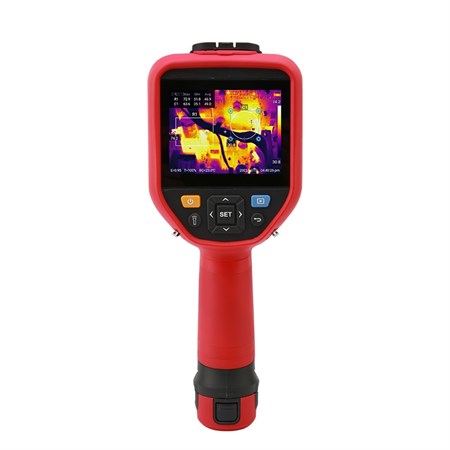

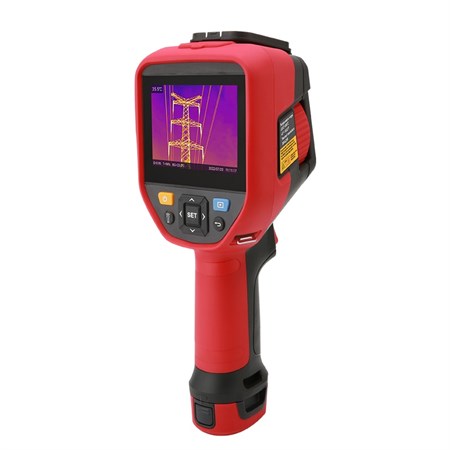

The UTi384G thermal imager from UNI T is a professional device designed primarily for industrial use with high IR resolution of 384×288 and a wide temperature range of -20℃~550℃. The professional lens with manual focus allows flexible adjustment of focal length according to the distance of different lenses and provides high quality image. Large 3.5" IPS touch screen provides more efficient and convenient operation. UTi384G also supports various excellent functions: Wi-Fi, voice recording, video recording, laser pointer, on-screen analyzer, isotherms, etc. They are perfect problem-solving tools for many industrial applications.

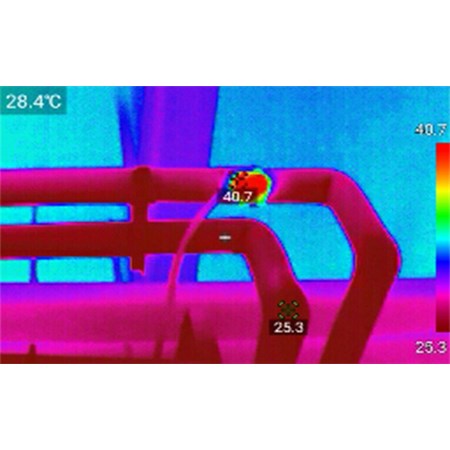

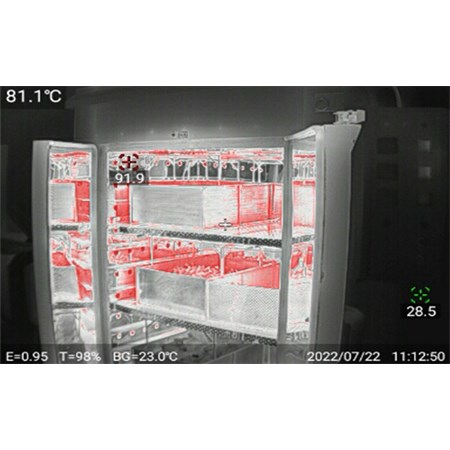

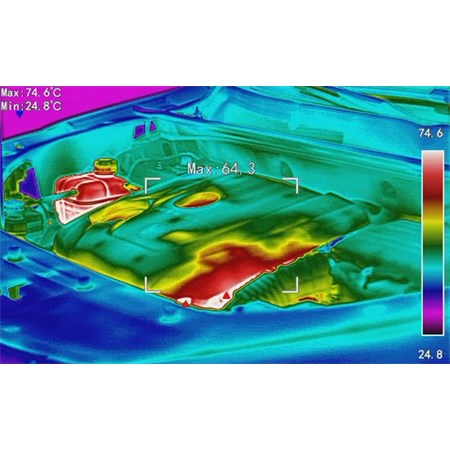

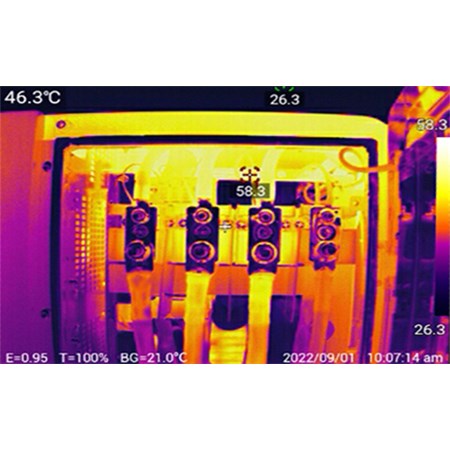

This model is an excellent choice for technicians and specialists who perform diagnostics and maintenance: - Inspection of solar panels, wiring and electrical panels. - monitoring of mechanical equipment, bearings, motors - building thermography - detection of thermal leaks, moisture, insulation - HVAC (heating, ventilation, air conditioning) system inspection
Product parameters:
- Display: 3.5″ IPS touchscreen (640 × 480) - intuitive operation and good readability - IR resolution of 384 × 288 pixels - provides very detailed thermograms - surface temperature measurement from -20 °C to +550 °C - on-screen analyser: 5 points / 5 lines / 5 rectangles / 5 circles - Digital camera resolution: 5MP - durability: IP54 and drop resistance of approx. 2 m - suitable for harsh environments - manual focusing - the user adjusts the sharp image himself according to the situation - Wi-Fi and Bluetooth connectivity via mobile app - PC software: real-time image analysis and projection - video and voice recording - additional functions: laser pointer, digital zoom (2×, 4×), colour palettes and display modes such as thermal, visual or fusion
Technical parameters:
- IR sensor resolution (pixels): 384 × 288 - display: 3.5″ touchscreen (640 × 480) - field of view (FOV): 42° × 30° - thermal sensitivity (NETD): ≤ 40 mK - Spatial resolution (IFOV): 1.91 mrad - frame rate: ≤ 30 Hz - spectral range: 7.5 - 14 µm - focusing: manual - temperature measurement range: -20 °C to +550 °C - measurement accuracy: ± 2 °C or ± 2 % (whichever is greater) - emissivity: adjustable 0.01 - 1.00 (standard 0.95) - colour palettes: 7 (switchable): White Hot, Black Hot, Red Hot, Ironbow, Rainbow HC, Rainbow, Lava - display modes: thermal, visual, fusion, PIP (picture-in-picture) - on-screen analysis: 5 points / 5 lines / 5 rectangles / 5 circles - Digital camera resolution: 5 MP - digital zoom: 2×, 4× - high/low temperature alarm: icon - isotherms: automatic/manual/over/under/area - software analysis: PC + mobile app - video recording , voice recording - Wi-Fi / Bluetooth - Laser pointer - Removable Li-ion battery 3.7V/5200mAh (UT-M17) - Battery life: approx. 5 hours (with Wi-Fi off) - USB Type-C interface - ingress protection (IP): IP54 - Drop resistance: 2 m - Internal memory: 8GB - External memory: microSD card up to 32 GB - Image/video storage format: images: JPEG; Video: MP4/IRGD - Certifications: CE, UKCA, FCC, RoHS - weight: 880 g - dimensions: 261×104×97 mm
Package: - Standard accessories: microSD card, USB cable (Type-C), hand strap, manual, 2 × Li-ion batteries, documentation download guide - Individual packaging: case/box - quantity per carton: 1 piece - carton dimensions: 400 × 185 × 345 mm - gross weight of carton: 4.2 kg
