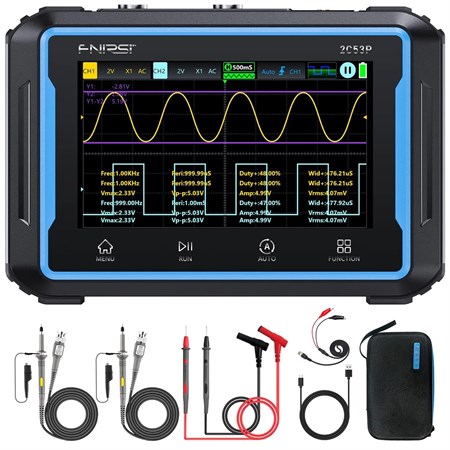

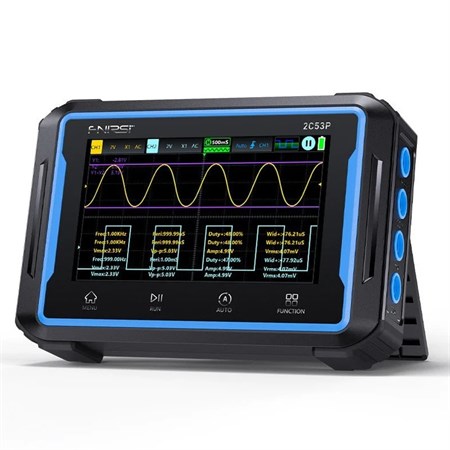

The FNIRSI 2C53P 3-in-1 Digital Oscilloscope is a versatile instrument that combines the functions of a digital oscilloscope, signal generator and multimeter. It can simultaneously measure various electrical parameters or capture waveforms and display electrical parameters or electrical signal waveforms. It is equipped with a 4.3" color touch screen display with 480×272 pixel resolution, 4000mAh battery and 4 hours of operation time.

Oscilloscope:
It has an analog bandwidth of 50 MHz and a real-time sampling rate of 250MSa/s. It includes a 1×/10× probe. It is designed to measure period, frequency, peak values, maximum and minimum values, average values, rms values, amplitude, cycle load and pulse width, and supports FFT spectrum analysis, mathematical operations, cursor measurement, XY mode and other functions. It can store up to 5 groups of measurement data, allowing in-depth analysis and visualization of data management.
Signal generator:
Built-in DDS function signal generator with maximum output frequency10 MHz and adjustable amplitude and duty cycle, provides excellent flexibility for simulating various signals. This signal generator with 12 kinds of adjustable waveforms, including sine waves, square waves, sawtooth waves, half waves, full waves, positive step waves, inverse step waves, DC signals, exponential rise/fall, etc.

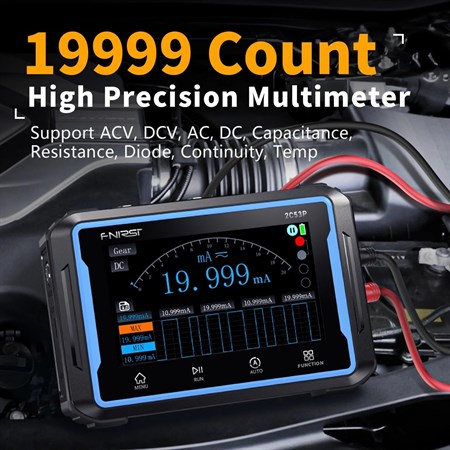

Multimeter:
The FNIRSI 2C53P is equipped with a digital multimeter with automatic range selection. The multimeter can be used to measure AC/DC voltage and current, resistance, capacitance and diodes.


Product parameters:

- 3in1: Oscilloscope, signal generator and multimeter mode, with voltage measurement up to ±400V.
- Easy measurement. A long press of the AUTO button quickly calibrates the baseline and displays the measurement waveform without complicated tuning.
- Small size and light weight make the oscilloscope easily portable, ideal for field work or students.
- Versatility: With an integrated signal generator, oscilloscope and multimeter, the device can be used for a wide range of test and measurement tasks.
- The user interface is intuitive and easy to navigate, allowing for quick setup and retrieval of measurements.
- Table support: There is a handy backrest with an adjustable angle of up to 90°
- Rubber corners


Technical specifications:

- Display: 4.3", resolution: 480×272
- menu: Chinese, English, Russian, Spanish, Portuguese, German,
- ChargingUSB: USB-C, 5 V/2 A
- Battery: Lithium, 4000 mAh
- Dimensions: 145×98×35 mm
- weight: 360g

Oscilloscope:
- Channels: Dual channel
- Analog bandwidth: 50 MHz
- Real-time sampling rate: 250MSa/s
- Storage: up to 64 kB
- Input impedance: 1Mohm
- Time base range: 10ns/div - 10s/div
- Vertical sensitivity : 10mv/div - 10v/div
- vertical resolution: 8 bits
- maximum measured voltage: ±400 V
- probe: 1×/10×
- bandwidth limit: supports 20MHz limit
- trigger mode: AUTO/Normal/Single
- Trigger Type: Leading Edge, Descending Edge
- Waveform display mode: XY/YT/Scroll
- Coupling Method: AC/DC
- Measured data: Period, frequency, peak value, maximum value, minimum value, average value, rms value, amplitude, duty cycle, pulse width
- mathematical calculations: 1+2, 1-2, 1*2, 1/2, -1, -2, |1|,|2|, FFT
- Curve fitting screenshot: Yes
- Export of curve images from computer: Yes

Signal generator:
- Channels: Single channel
- Frequency: 0-10MHz (Sine wave: 10MHz, other waveforms 5MHz)
- Amplitude: 0.1V-3.0V
- Square wave duty cycle: 0-100%
- Signal Type: sine wave, square wave, sawtooth wave, half wave, full wave, positive step wave, negative step wave, DC signal, exponential rise, exponential fall, multi-audio and sync pulse

Multimeter:
- DC voltage: 1.9999 V/19.999 V/199.99 V/1000.0 V
- AC voltage: 1.9999 V/19.999 V/195.99 V/77 V
- DC current: 19.999 mA/199.99 mA/1.9999A/9.999A
- AC current: 19.999 mA/199.99 mA/1.9999A/9.999A
- Resistance: 19.999M99?/1.9999 k?/199.99 ?
- kapacita: 999,9µF/99,99­µF/9,999µF/999,9nF/99,99­nF/9,999nF/9,999mF/99,99­mF
- continuity test: yes
