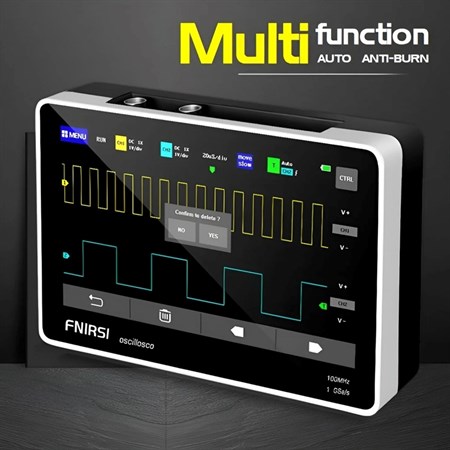

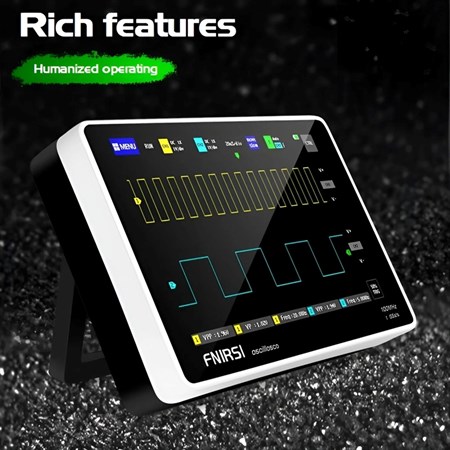

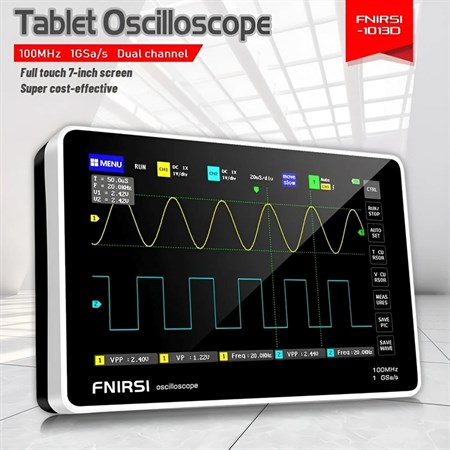

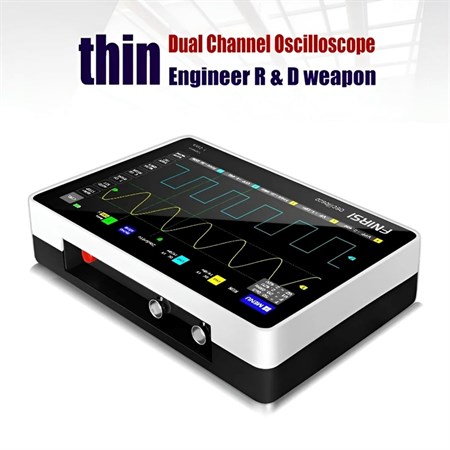

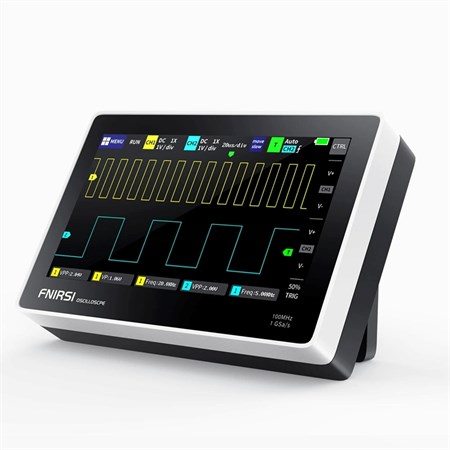

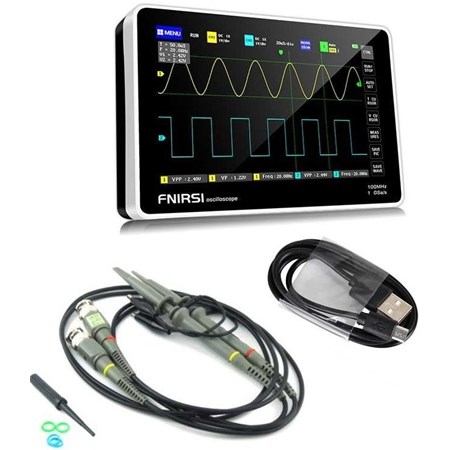

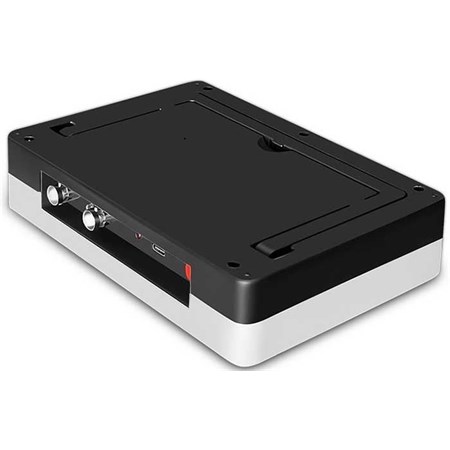

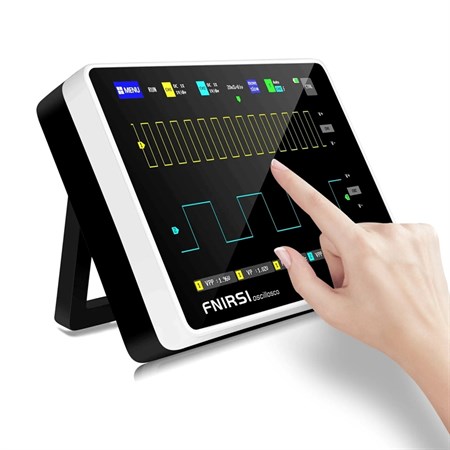

The FNIRSI 1013D digital dual-channel oscilloscope with a 7" TFT LCD touch display is an advanced device designed especially for technicians, electrical engineers and researchers in the field of electronics. This oscilloscope is an ideal tool for diagnostics, design and repair of electronic circuits and systems, making it suitable for laboratories, electrical engineers and amateurs. One of its main features is its modern TFT interactive 7" touch display with a resolution of 800×480, bright colors and high contrast. Thanks to its tablet-shaped design and built-in 6000mAh battery with a battery life of up to 4 hours, the oscilloscope is suitable not only for working indoors, but also for field workers. The user interface is intuitive and allows easy control of all oscilloscope functions. The FNIRSI 1013D offers a wide measuring range with high accuracy and sensitivity, which allows detailed analysis of signals in a wide range of applications. The device can measure up to 12 parameters. Measurements include functions such as frequency, amplitude, time intervals and many others, making it a versatile tool for various types of measurements. The oscilloscope is equipped with one-button automation for easier operation. For saving waveforms and screen captures, the oscilloscope has an internal memory of 1GB. Up to 1000 screenshots + 1000 sets of waveform data can be stored in this memory. The image manager supports thumbnail viewing and detailed viewing, page rotation, deletion and zooming in, out, scrolling waveforms, etc. The oscilloscope also has a USB port for connecting to computers and other devices. Using this connection, you can easily export the saved data. 1013D Overall, the FNIRSI 1013D digital oscilloscope is an excellent choice for anyone who needs a reliable, accurate and easy-to-use tool for working with electronics.
Product Parameters:
- 100MHz Analog Bandwidth @ 1GSa/s Sampling Rate (1X = 5MHz, 10X =100MHz) - 7-inch color TFT LCD display with 800 * 480 resolution - Voltage measurement range: 1X 0~40V, 10X 0~400V, 100X 0~4000V - Measurement of up to 12 parameters: VPP, VP, Vmax, Vmin, Vavg, Vrms, Frequent, Duty+, Duty-, Time+, Time-, Period. - full trigger function (simple, normal, automatic) - one-button waveform and screenshot saving - built-in 1GB storage space to record up to 1000 screenshots + 1000 sets of waveform - USB that can be connected to a computer and share screenshots with a computer - Lissajous Figures graphic display can be used to determine the amplitude, frequency and phase contrast of two groups of signals. - built-in 6000mAh rechargeable lithium battery for 4 hours of continuous use
Technical parameters:
- analog bandwidth: 100MHz * 2 - number of channels: 2 channels - maximum real-time sampling rate: 1GSa/s - vertical sensitivity: 50 mV/div~500V/div - horizontal time base range: 50S /div~10nS/div - maximum test voltage: 40V (1X probe), 400V (10X probe) - storage depth: 240Kbit - input resistance: 1Mohm - ADC accuracy: 8bit - coupling mode: AC/DC Trigger mode, Single, Normal - automatic trigger edge: Rising edge/falling edge - external trigger voltage: 0 ~ 40V - display: 7 inches - 800*480, capacitive touch + gesture - expansion ports: USB for image export - power supply: 1 x lithium battery, 6000mAh (included) - battery operating time: 4 hours - charging time: 5 hours - case material: ABS - device dimensions: 184 × 124 × 50 mm - package size: 230 × 150 × 60 mm - package weight: 1000 g
