Protect your devices from surges
In single-phase mode, each phase can operate independently. Regardless of the network load and output voltage fluctuations, the KEMOT PROavr-15k maintains the voltage at 230 V ±3%, ensuring efficient operation of all devices, including those that are sensitive to the quality of the mains voltage. The regulation is automatic, ensuring high accuracy of the output voltage. A fault in one phase does not affect the operation of the others.

Three-phase mode
In three-phase mode, maintaining phase balance is crucial. The stabilizer monitors and controls the voltage in each phase to ensure consistency between them. It compensates for excessively high or low input voltages and, once stabilized, feeds the voltage to the output. In this mode, if any phase fails or disconnects, the device activates protection and prevents voltage from being applied to the output, indicated by a "PHASE FAILURE" light.
How does the KEMOT PROavr-15k voltage regulator work?
The KEMOT voltage regulator is a device designed to maintain a set output voltage of 230 V. Its purpose is to increase or decrease the input voltage that is too low or too high, and to ensure that the output voltage remains within the permitted range, and to prevent energy spikes that could be dangerous for connected equipment. The controller design is based on a toroidal transformer, which ensures stable operation of the device.

Voltage regulator with servo motor
The KEMOT PROavr-15k voltage regulator maintains voltage with a high accuracy of up to 3%. This high level of accuracy is the result of servo-drive based technology.

BYPASS switch
The device is also equipped with a "bypass" function, i.e. a switch that bypasses the operation of the regulator, allowing it to be isolated and seamlessly supplied to the home network from an external source.

BACKUP function
If you need a voltage regulator for equipment with high inrush currents, choose a model with a delay switch. The KEMOT PROavr-15k features a delay switch with a range of 6 to 180 seconds, reducing the risk of damage to connected devices when they have high inrush currents. The KEMOT PROavr-15k is also protected against overvoltage, undervoltage, overload, overheating and short circuit.

Easy transport

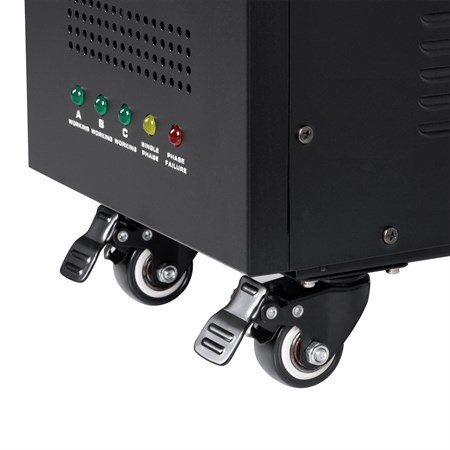

To make it easier to move and place the KEMOT stabilizer in the right place, it is equipped with four sturdy castors. These castors allow easy transportation of the device to different locations, greatly simplifying its operation and maintenance.

Application
The KEMOT PROavr-15k is suitable for home and office use. It is ideal for:
televisions and broadcasting equipment
speakers, mini systems and other audio/video equipment
household appliances such as induction hobs, microwave ovens, fridges and freezers etc.
computers, monitors, printers, cash registers and other office equipment
central heating furnaces and pumps
power generators

Technical parameters:

Rated power: 15000 VA
Input voltage range: 225 - 450 V
Minimum starting voltage: 225 V
Minimum output voltage: 310 V
Output voltage range: 400 V
Phase: 1 / 3 phase
Stabilization accuracy: ±3%
Efficiency: 98%
Stabilization control: servo motor
Transformer: CRGO toroidal
Indicator: LCD display
Operating frequency: 50/60 Hz
Start delay switch: 6 / 180 s
Housing material: steel
Operating temperature: 0 - 40 °C
Relative humidity: 10 - 102 %
Storage temperature: -15 °C - 45 °C
Protection: overload, short circuit, over/under voltage, overheating
Cooling start: at 30% of rated power
Cooling shutdown: at 20% of rated capacity
Dimensions: 545 x 230 x 397 mm
Weight: 42 kg
