Shelly The Pill is a compact module designed to work with sensors and automation systems. The device allows monitoring of temperature, humidity, voltage and digital states and works with analogue and digital sensors thanks to its peripheral modes. It is powered via USB-C and can operate continuously in technical and domestic installations. Its small size and dual 2.4GHz WiFi and Bluetooth BLE 4.2 connectivity make it easy to integrate into spaces with limited space.

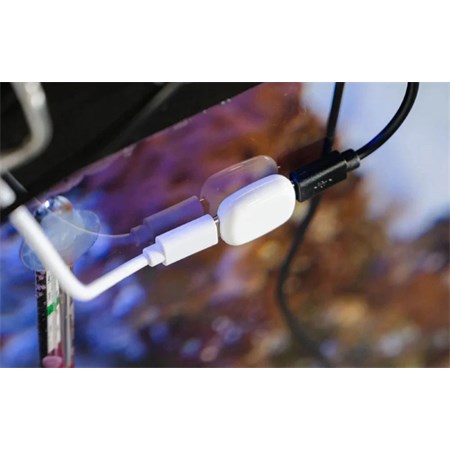

Temperature and humidity monitoring The device works in plug-and-play mode with the popular DS18B20 temperature sensors and DHT22 temperature and humidity sensors. It supports up to five DS18B20 probes simultaneously, allowing multiple measurement points to be monitored at once. It is suitable for temperature control in swimming pools, aquariums, water tanks and technical systems.
Extensive configuration options The model is based on the ESP32-C3 microcontroller (8 MB Flash) and offers features characteristic of the Shelly Gen3 platform. It allows you to create schedules, use webhooks, support MQTT, encrypt communications and create custom scripts. Integration with external systems is possible via MQTT, WebSocket or HTTP, allowing easy integration of the device into complex automation systems.
Different operating modes Shelly The Pill offers configurable operating modes for digital inputs and outputs as well as analog measurement. The inputs and outputs operate at 3.3V and the digital mode can be set independently as input or output. An analog voltmeter built into the device measures voltages from 0-2.5 V, while an external expansion module allows measurements up to 30 V DC. This allows the device to work with door sensors, motion sensors, flood sensors and other simple digital sensors.

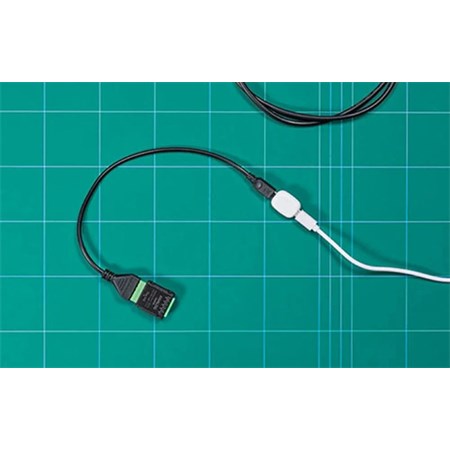

DC expansion and control Functionality can be extended with available accessories. The external SSR module allows two-channel control of low DC current devices up to 30 V / 300 mA, such as LED indicators, small fans or solenoid valves. The 0-30 V analogue module allows voltage monitoring in 3.7 V, 12 V or 24 V battery systems.

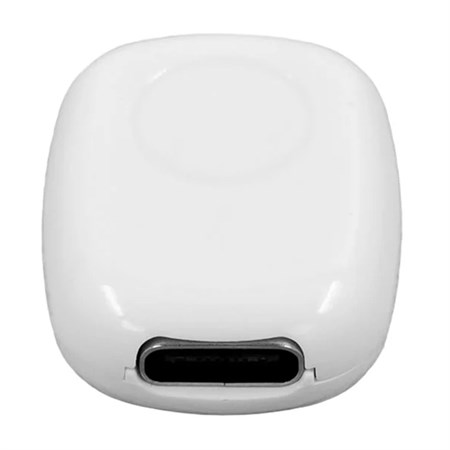

Compact design and power supply via USB-C With dimensions of 26 × 19.95 × 8.5 mm and a weight of just 3 g, the device can be mounted virtually anywhere. Power is provided via a USB-C port with 5 V and power consumption is less than 1 W. This allows The Pill to work in low-power installations and USB-based systems.
Specifications:
Colour: white Dimensions: 26 × 19.95 × 8.5 mm Weight. 3 g Housing material: plastic Operating temperature: -20 °C to 40 °C Humidity: 30% to 70% RH Power supply: 5 V DC (via USB Type-C port) Power consumption: < 1 W
