Tipa

Effective protection of electrical installations

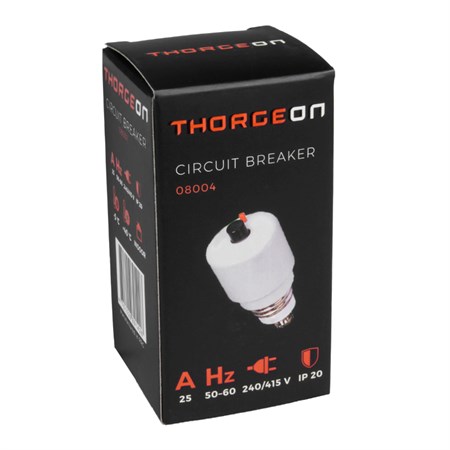

The WTA25A circuit breaker is a professional device designed to protect electrical circuits against overloads and short circuits. Its robust design and high maximum load capacity make it the ideal solution for domestic and industrial applications.

Type L tripping characteristic
The circuit breaker has an L type tripping characteristic which is ideal for protecting circuits with higher loads. It reacts precisely to changes in current and prevents damage to the installation and connected equipment.

Supports AC voltages of 250/380 V
The WTA25A supports rated voltages up to 250/380 V AC , making it a versatile solution for a variety of installation types. It is suitable for standard domestic circuits as well as more demanding industrial applications.

It can withstand a maximum load of 25 A
The circuit breaker is rated for a maximum current of 25 A , allowing it to protect high power equipment. It is an excellent choice for protecting systems requiring high reliability and durability.

Resistance and compact size

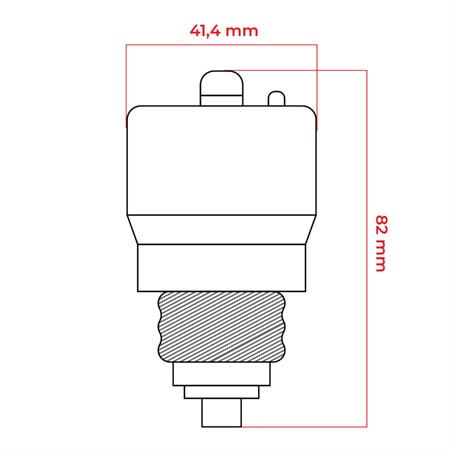

The WTA25A switch features a robust design and compact dimensions ( height 82 mm , width 41.4 mm ), allowing it to be used in confined spaces. High-quality materials ensure long-term operational reliability.

Easy installation and intuitive operation

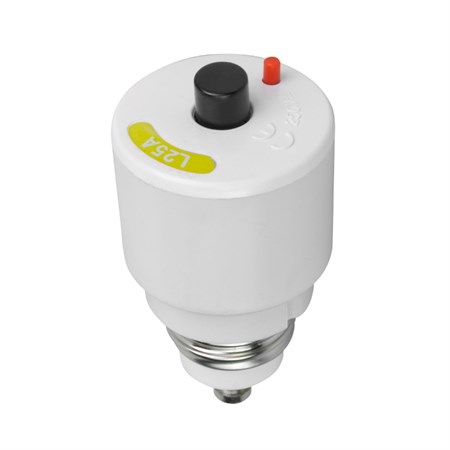

The E27 base makes installation quick and easy, just like installing a standard bulb. The product is equipped with a reset button that allows immediate restoration of operation after a safety shutdown, increasing user convenience.

Using the WTA25A circuit breaker
Protection of electrical installations : Protection against overloads and short circuits in circuits with higher current intensity.
Easy installation : The E27 threaded socket makes installation quick and easy.
Versatility : Can be used in AC voltages of 250/380 V and in high load systems up to 25 A.
Convenient reset : Easy-to-use button for quick reset.

Specifications:

Type: automatic fuse.
Type: screw-type overcurrent circuit breaker
Socket: E27
Trigger characteristic: L
Rated voltage: AC 250/380 V
Maximum load: 25 A
Reset button: yes
Dimensions: 82 mm x 41.4 mm
Degree of protection: IP20
Colour: white

The WTA25A circuit breaker is a reliable protective device that is ideal for a variety of applications thanks to its functionality and durability, ensuring installation safety and ease of use.
