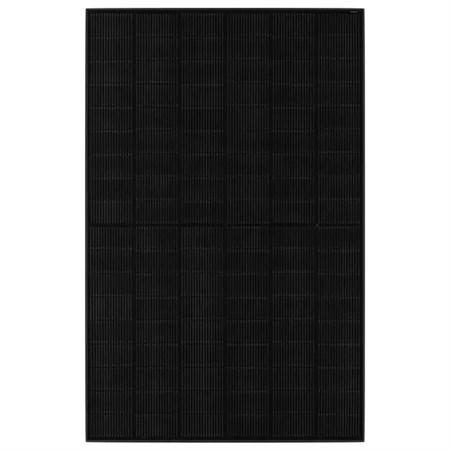

The JA Solar JAM60S21 375/MR photovoltaic panel is a monocrystalline panel with Half-Cell and Multi Busbar (MBB) technology designed for efficient power generation in residential and commercial systems. It achieves higher power output, better shading behavior and lower electrical losses through the use of half-cells. The panel design also ensures high mechanical durability and long-term operational reliability.

Main features and functions:

Half-Cell technology for reduced losses and higher performance
Multi Busbar (MBB) technology for better current collection
Higher resistance to partial shading
lower risk of hotspotting
improved panel temperature characteristics
High mechanical load resistance
anodised aluminium frame in black
suitable for residential and commercial PV installations
IEC 61215, IEC 61730, UL 61215 and UL 61730 certification
12-year product warranty
25-year linear performance warranty

Specifications:

Panel Type: Monocrystalline Half-Cell
Model: JA Solar JAM60S21-375/MR
Maximum power (Pmax): 375 Wp
Module efficiency: 20.2%
No-load voltage (Voc): 41.45 V
Short-circuit current (Isc): 11.41 A
Voltage at maximum power (Vmp): 34,50 V
Current at maximum power (Imp): 10,87 A
Power tolerance: 0 to +5 W
Maximum system voltage: 1000 / 1500 V DC
Maximum series fuse value: 20 A
Number of cells: 120 (6×20)
Connectors: MC4-EVO2 / QC 4.10-35
Dimensions: 1769 × 1052 × 30 mm
weight: 20.2 kg
Protection rating of the connection box: IP68
Operating temperature: -40 °C to +85 °C
front static load: 5400 Pa
static load on the rear side: 2400 Pa
