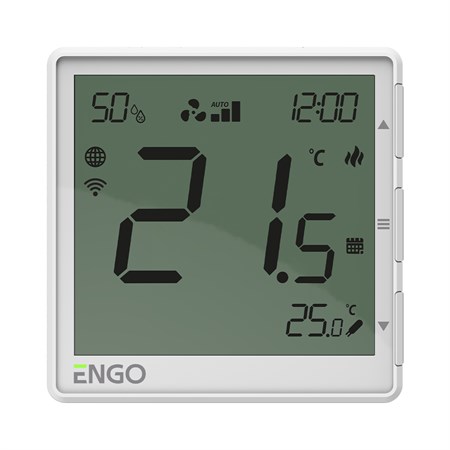

Internet fan controller for concealed fan, Wi-Fi, 230V
- Wireless communication via 2.4GHz Wi-Fi and MODBUS RS-485 for system integration. - Control of 2 or 4-pipe fan coils for flexible heating and cooling control. - Support for 3-speed 230V fans with automatic and manual control. - Mixed system control: cooling fan coils and underfloor heating. - Freeze and overheat protection function to ensure safety. - Remote control via ENGO Smart app. - Humidity and temperature measurement to monitor room conditions. - Memory of settings after power failure. - Energy saving mode (ECO) reduces energy consumption. - Output load up to 5(2)A for fan coils and ducted heaters. - Easy installation and configuration.
Specifications:
230V AC power supply. Temperature setting range: 5 - 45°C Temperature display accuracy: 0.1 or 0.5 °C Control algorithm: Delta FAN, hysteresis (±0.1 °C to ±2 °C) Communication: Wi-Fi 2.4 GHz MODBUS RS-485 Input: S1/COM - temperature sensor or potential-free contact S2/COM - temperature sensor or potential-free contact Valve control output: V1, V2 - 230V AC, 5(2)A Fan control output: F1, F2, F3 - 230V AC, 5(2)A Dimensions [mm]: 90 x 90 x 44
