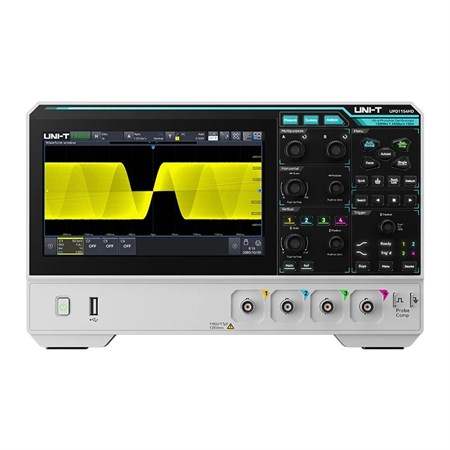

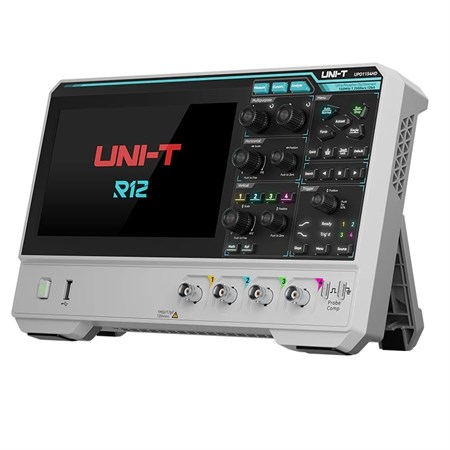

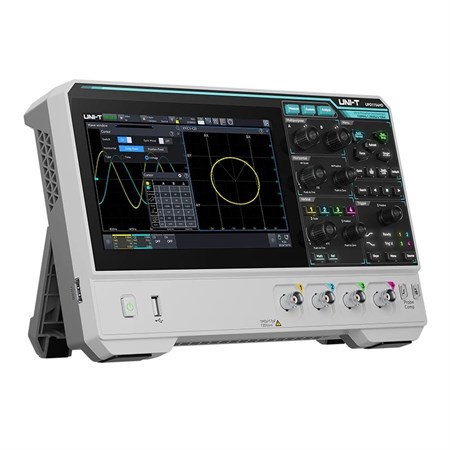

The UNI-T UPO1152HD Digital Oscilloscope is a high-resolution dual-channel oscilloscope with 150 MHz bandwidth and 1.25 GSa/s sampling rate, designed for clear and accurate waveform analysis in basic electronics and educational environments. With a memory depth of 100 Mpts and a waveform sampling rate of 500,000 wfms/s, it ensures smooth signal acquisition and reliable fault detection - ideal for students, hobbyists and start-up engineering laboratories.

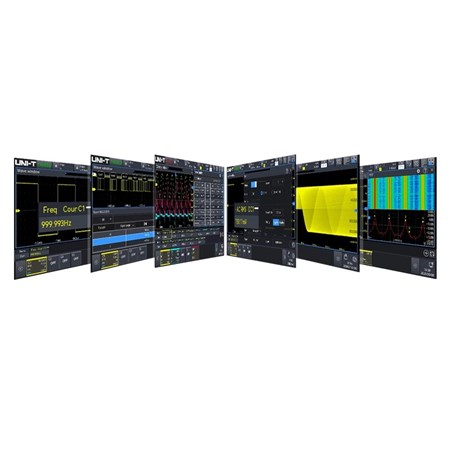

- analog bandwidth: 150 MHz bandwidth ideal for education, basic embedded system development and general purpose electronics debugging - real-time sampling rate: up to 1.25 GSa/s to capture high-speed and transient signal behavior - 12-bit vertical resolution: high-fidelity waveform details with up to 4096 quantization levels - channels: 2 analog channels with up to 100 Mpts memory depth per channel - waveform acquisition rate: Up to 100,000 wfms/s (sequential mode: up to 500,000 wfms/s) for detecting intermittent signal events - Integrated 6-in-1 instrument: Digital Oscilloscope Spectrum Analyzer Digital Voltmeter (DVM) Frequency Meter Protocol Analyzer Power Analyzer

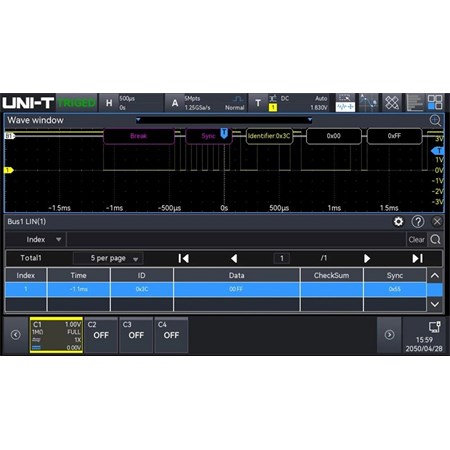

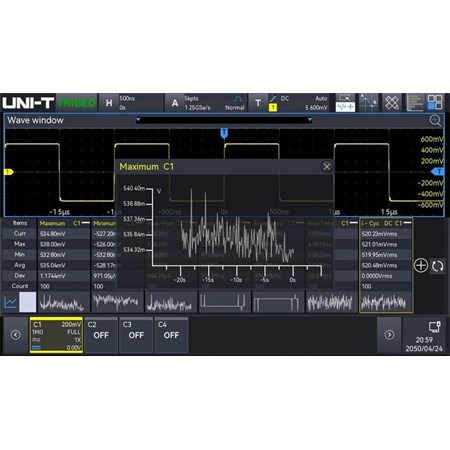

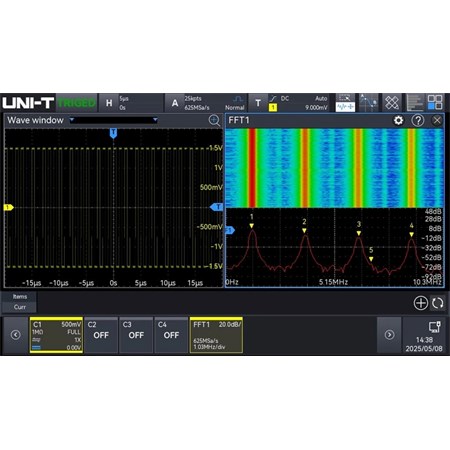

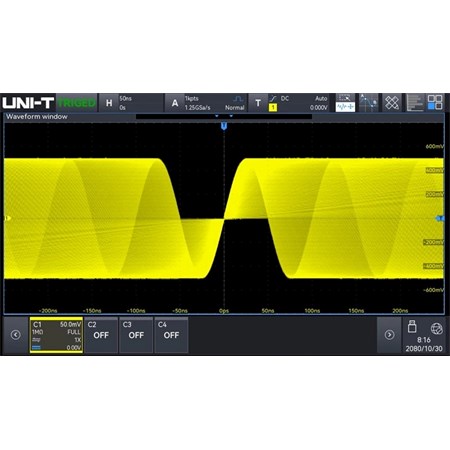

- Measurement Visualization: Supports bar and line graph formats for dynamic trending - Waveform Recording: Real-time hardware recording of up to 100,000 frames with USB export option - Enhanced FFT: Up to 1 million point resolution FFT with waterfall display, detection settings, frequency markers, and advanced spectral analysis - 56 automatic measurement parameters: Includes comprehensive signal characterization with graphical display - Multi-window display: Simultaneous waveform, FFT, decoding, and measurement display - Frequency Counter: Multi-channel 6-digit hardware frequency counter with adjustable refresh rate and accuracy - Digital Voltmeter Measurement: Supports DC, AC RMS, and DC+AC RMS - Trigger types: edge, pulse width, video, ramp, run-in signal, over-amplitude, delay, timeout, duration, set and hold, Nth edge and code pattern - Protocol triggering and decoding: RS232/UART, I²C, SPI, CAN and LIN - Zone triggering: graphical trigger tool for isolating rare and complex signal anomalies - Ultra Phosphor 3.0: 256 grayscale intensity plotting for vivid and detailed waveform visualization - Display: 7-inch capacitive multi-touch display with HD 1024×600 resolution and gesture control (click, pan, zoom, drag) - Interface: USB Host, USB Device, LAN, AUX Out (Trig Out, Pass/Fail, DVM), HDMI - SCPI support: enables automation, scripting and integration into measurement systems - Built-in web server: remote access from a computer or mobile device device via browser - online update: supports firmware updates for better performance and new features - supply voltage: 100...240V AC - dimensions: 282 x 175 x 49 mm - gross weight: 1.6 kg
Standard equipment: - USB cable - measuring probe 2x - power cable
