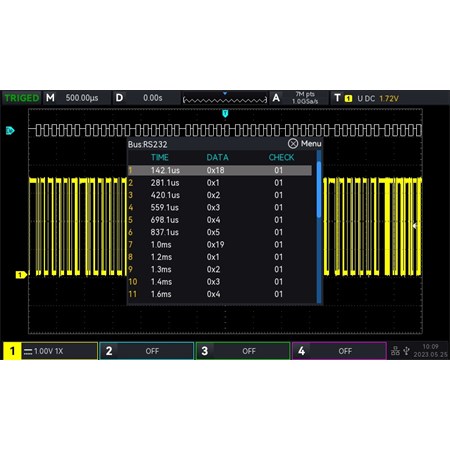

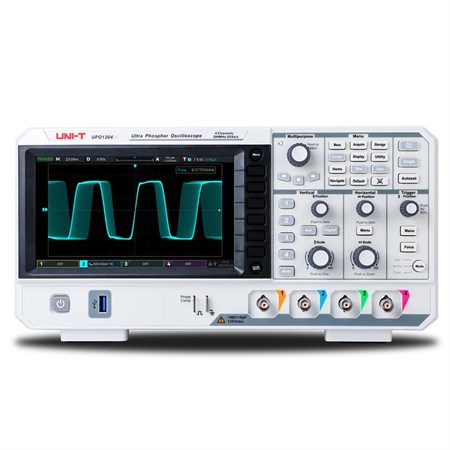

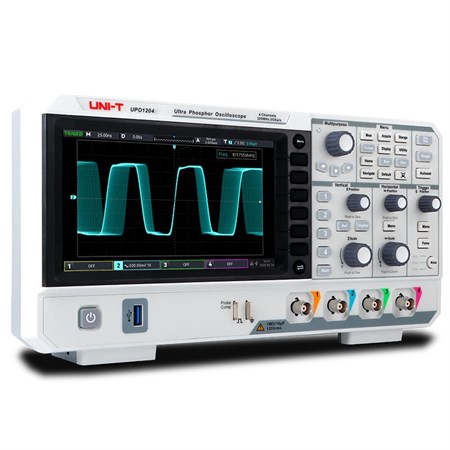

The UPO1104 digital phosphor oscilloscope of the UPO1000 series adopts the innovative UNI-T Ultra Phosphor 2.0 with a new improved appearance and deep storage function, high-speed waveform acquisition, real-time waveform recording and playback, and the display reaches up to 2GSa/s. The series supports independent DVM module, rich bus triggering and decoding functions, and supports hardware real-time decoding with full memory. It is widely used in many fields, including embedded system design, instrumentation, industrial electronics, consumer electronics, automotive electronics, field maintenance, research, development, education and many other fields.
Product parameters:
The UPO1104 digital oscilloscope is equipped with the cutting-edge digital 3D technology known as Ultra 2.0.

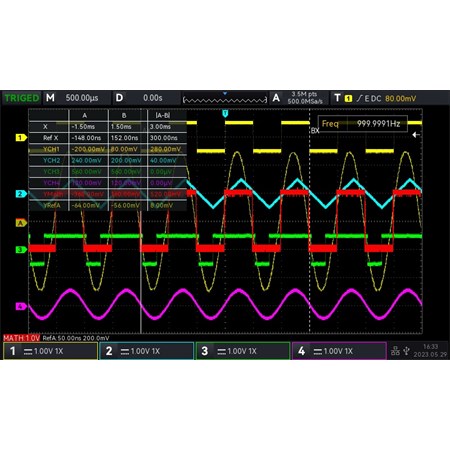

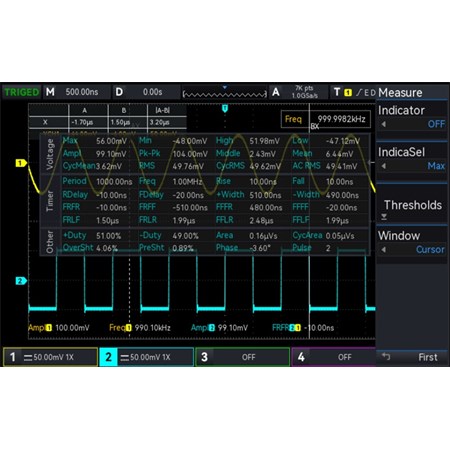

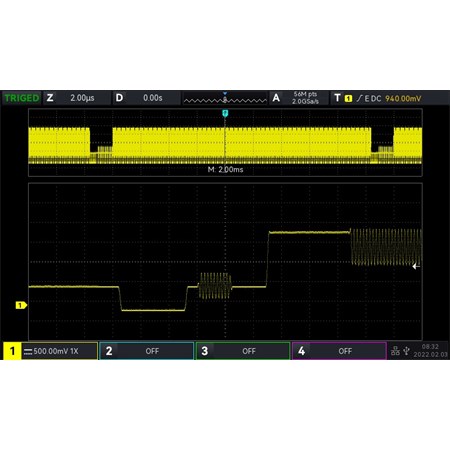

- Fast Acquire Phosphor™: uses the original Ultra Phosphor display technology - Hardware real-time recording: maximum number of recordings 120,000 frames - long recording memory length: 56 Mpts recording memory length for full frequency domain information at high sampling rates without waveform distortion - 36 parameter measurements: supports fast measurement of all parameters and statistical functions. Selectable on-screen measurement and cursor-selected measurement area, threshold setting to help you accurately analyze specific parameters - High scanning performance: With innovative parallel digital signal processing technology, normal sampling can reach an ultra-high scanning speed of 150,000 wfms/s, and fast scanning mode can reach 500,000 wfms/s - Navigation function: It offers three navigation modes: time, mark and segment to quickly find the target waveform. It supports automatic scrolling to display memory waveforms with multi-speed settings to facilitate comprehensive trend monitoring - DVM: Built-in digital voltmeter (DVM) with over-limit alarm setting - Cursor measurement: Support CH1, CH2, CH3, CH4, MATH, REF measurement simultaneously; support screen measurement, simultaneous time and voltage measurement - waveform records can be saved in video format: the recorded waveform can be played back and viewed on the computer side to improve the user experience - Full-memory real-time hardware decoding: with 56Mbps memory depth, the decoding speed of 3 protocols (RS232/UART, I2C, SPI) reaches milliseconds, which is 100 times faster than the software decoding speed, and greatly improves the analysis efficiency. - 1Mpts enhanced FFT: support multi-domain display, independent spectrum display and multi-dimensional visualization of signal characteristics. It offers 4 trace modes and 4 detector modes to meet different analysis needs. Support automatic trace peak measurement to quickly identify key spectral characteristics.
Technical parameters:

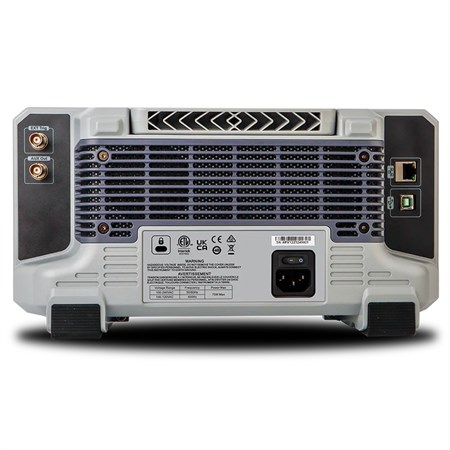

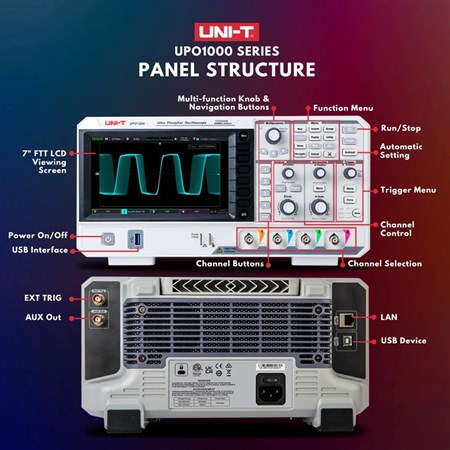

- oscilloscope type: digital - power supply: 100V-240V AC, 50/60Hz - number of channels: 4 analog - bandwidth: 100 MHz - real-time sampling rate: 2GSa/S - rise time: ≤3.5 ns - recording memory length: 56Mpts - input impedance: 1MΩ ± 2% / 16pF ± 2pF - type of display used: LCD TFT 7" - triggering: rising edge, Nth Edge, window, pattern, runt, falling edge, with delay, pulse width, slope, timeout, video signal - time base: 1n...1pcs/div - max. input voltage: 400V - vertical resolution: 8bit - input coupling: AC, DC, GND - interface: AUX, EXT Trig, LAN, USB device, USB Host - Dimensions (L x W x H): 306 mm × 138 mm × 107 mm - Shipping weight: <2.5 kg

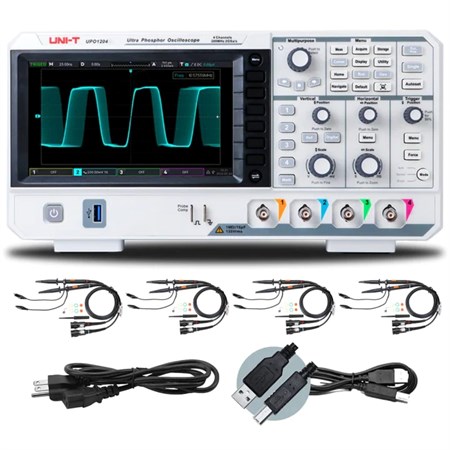

Package contents: - Power cable - USB 2.0 cable - 100MHz probe*4 (UT-P04)
