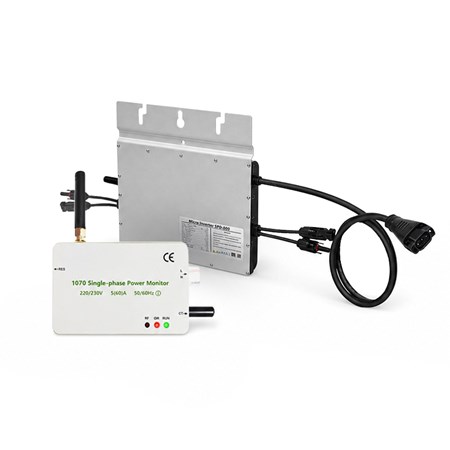

The SPD series microinverter is a modern solution for efficient use of energy from photovoltaic panels with the function of limiting overflows to the distribution network. The system consists of a microinverter and a smart meter that monitors the household consumption in real time and optimizes energy production to avoid unwanted overflows. The microinverter converts the direct current (DC) from the PV panels into alternating current (AC), which is compatible with the regular electricity grid. Because it is equipped with an anti-islanding function, it instantly re-generates power and isolates the voltage on the output cable in the event of a sudden disconnection from the socket or a mains power failure. This makes it completely safe for use in the home. Maximum Power Point Tracking (MPPT) technology ensures maximum performance of each panel. The system allows detailed performance monitoring via the Smart Life (Tuya) mobile app, where you can monitor current production, consumption and device status, make firmware updates or limit output power. With IP67 protection, the microinverter is also suitable for outdoor installation and can withstand harsh weather conditions. It also has the advantage of a low DC voltage design, which increases safety over conventional high voltage string systems.

Important notice!
The installation of PV panels and any interventions in the wiring (smart meter installation) should only be carried out by a person with the appropriate electrical qualifications. The information in this description serves only as general technical information and does not replace a professional inspection and assessment of the electrical installation.

For connection to the distribution network, the distribution network operator (ČEZ, PRE, EG.D) must be informed and its requirements must be observed. In case of incorrect installation or non-compliance with the applicable regulations, there is a risk of injury, damage to the equipment or penalties. The Seller assumes no liability for damages or defects caused by improper installation, unprofessional intervention in the wiring or failure to comply with applicable regulations.

Technical parameters
- Rated power: 800 W
- Input power (PV): up to 500 W per input
- Number of MPPT inputs: 2
- MPPT voltage range: 16-60 V DC
- Max. 60 V DC
- Starting voltage: 22 V DC
- Max. input current: up to 2×18 A
- Output voltage: 230 V AC (180-275 V)
- Frequency: 50 Hz (60 Hz option)
- Efficiency: up to 96% (CEC up to 96.5%, MPPT 99.8%)
- Efficiency: > 0.99
- THD: < 3 %
- Standby power consumption at night: < 0.3 W
- Protection: IP67
- Dimensions: 250 × 253 × 29 mm
- Weight: 3.6 kg
- Communication: Wi-Fi (2.4GHz)
- Cooling: passive (no fan)
- Operating temperature: -40 °C to +60 °C

Smart Meter (RXY-1070)
- Voltage: 176-264 V AC
- Current: 0-50 A
- Measurement accuracy: ±1 %
- Measured quantities: voltage, current, power, power factor, energy
- Communication: WiFi (range up to 50 m in open space)
- Dimensions: 89 × 60 × 32 mm
- Weight: approx. 100 g
- Operating temperature: -30 °C to +75 °C

Product parameters
- Device type: microinverter with overflow limitation function
- Application: photovoltaic systems (households, balcony installations)
- Installation: outdoor / indoor (IP67)
- Monitoring: Smart Life mobile app (Tuya)

- Functions:
- Grid overflow limitation
- monitoring of production and consumption
- overheating protection (derating)
- protection against overvoltage, undervoltage and islanding

- Compatibility: standard PV panels with MC4 connectors
- Connection: to the mains (socket / fixed connection)
- Safety: low voltage DC system, galvanic isolation
- Certification: CE, RoHS, EN standards for safety and EMC
(EN62109-1/-2, UL1741, IEC62477, IEEE 1547 EMC EN61000-3-2/-3, EN61000-6-1/-2/-3/-4, EN301489-3/-17)
