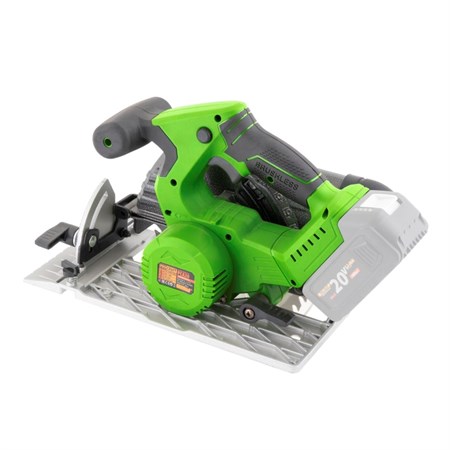

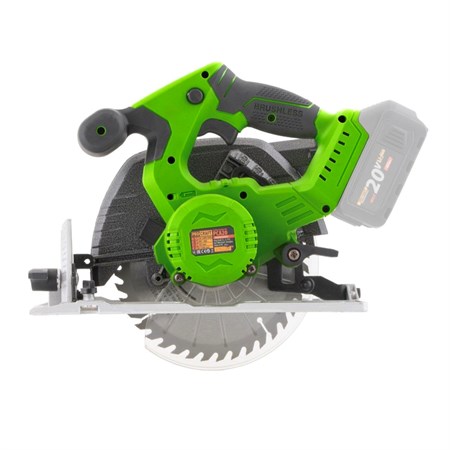

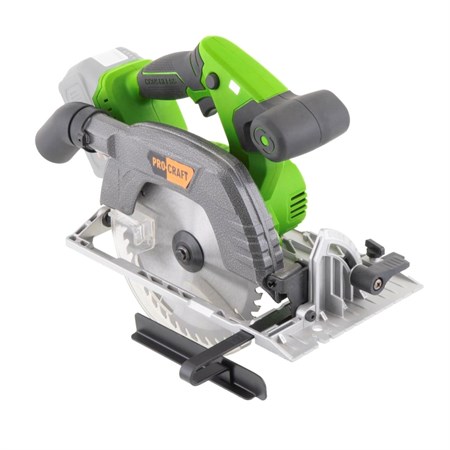

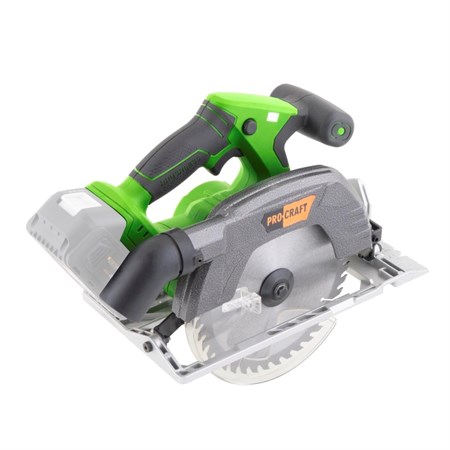

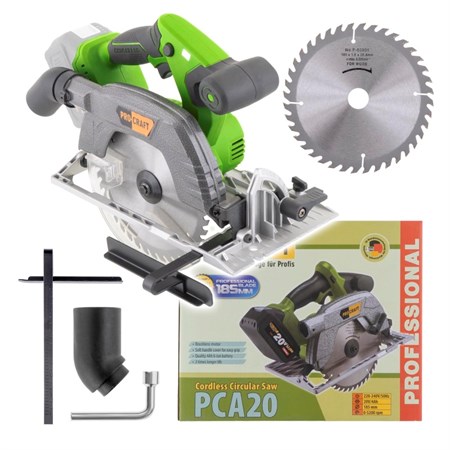

The PCA20 circular saw is the ideal tool for cutting up to 60 mm thickness. The 185 mm diameter blade reaches up to 5200 rpm and ensures a clean cut thanks to the powerful brushless motor with high performance. Power is provided by a 20 volt battery.

Depth adjustment
For precise adjustment of the cutting depth, the circular saw is equipped with a scale that allows you to select any cutting depth from 0 to a maximum depth of 60 mm.

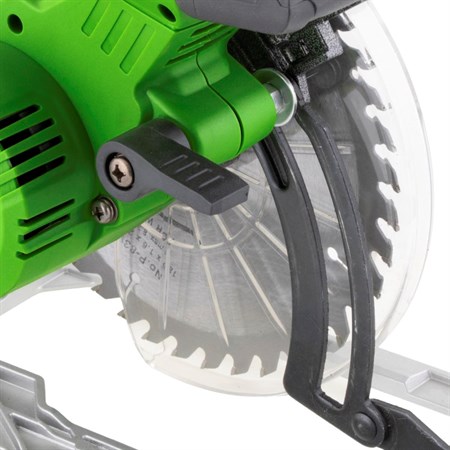

Angle adjustment
Angle-accurate mitre cuts are possible at 90 degrees for laminate work, at 56 degrees for boards or tiles.

Quality of materials
Only the most modern materials are used in the manufacture of our circular saws. Special attention is paid to the sole of the tool. The robust metal does not deform during work and allows cuts to be made with maximum precision. All controls and the brushless motor are safely housed under the robust plastic housing.

The advantage of this motor is not only its high performance and energy efficiency, but also its high resistance to sawdust generated during operation.

Functionality
If parallel cuts are required, the saw is equipped with a special stop that can be mounted either on the front or on the back of the saw, depending on your actual requirements.

Comfort
A comfortable, ergonomically shaped handle, light weight, battery independent operation and of course no wires in the hand are all elements for maximum performance and comfort - and all these factors combine in our PCA20 circular saw.

Technical specifications:

Battery voltage , V: 20
LI-ion battery , Ah: 4.0
Wheel , mm: 185
Speed , /min: 5200
Motor type: Carbonless
Max. depth of cut at 90°: 60
Max. cutting depth at 45°: 45
Weight , kg: 3,25
Sound pressure level: LpA=78dB(A); K= ±3dB(A)
Sound power level: LwA=80dB(A); K= ±3dB(A)
Vibration: 2.5; K=±1.5
Protection class: IPXO
Protection Class: II
